Production Lines
End-to-end production lines, engineered for your target product mix and daily capacity. We handle layout, equipment selection, installation and commissioning.
Chest Freezer Production Line Factory
we manufactures chest freezer production lines alongside refrigerator cabinet-body and door foaming lines. Chest freezer cabinets are foamed horizontally, so the line is built around wave-type PE / EPP cabinet tooling and fixture frames rather than the upright cabinet jigs used for refrigerators — the same fixture template runs from a single-station machine up to the 11-station hydraulic mainstream OEM line.
A typical path starts on the single-station hydraulic linear machine for mould trial and PE / EPP wave-type chest freezer samples (1986 / 1700 / 1186 type), then moves to a multi-station cabinet-body line for volume output, including commercial heavy-duty chest freezers from 220 to 800 L. Door foaming, fixtures and the matching high-pressure foaming machine are supplied from the same factory, so the line is commissioned as one system.
Refrigerator & Chest Freezer Cabinet Body Foaming Lines (6)
Linear / specialty foaming lines for refrigerator and chest-freezer cabinet body — from 6-station motor-driven to 11-station hydraulic mainstream OEM, plus single-station, supermarket, air-curtain and island specialty machines.
4-Station Hydraulic Air-Curtain Cabinet Foaming Fixture
4-station hydraulic foaming fixture for air-curtain refrigerated display cabinets (open-front merchandisers up to 4 × 1.8 × 0.55 m). Top/bottom flat-pressing clamp, water heating, 50 kW, 80–200 cabinets/shift.

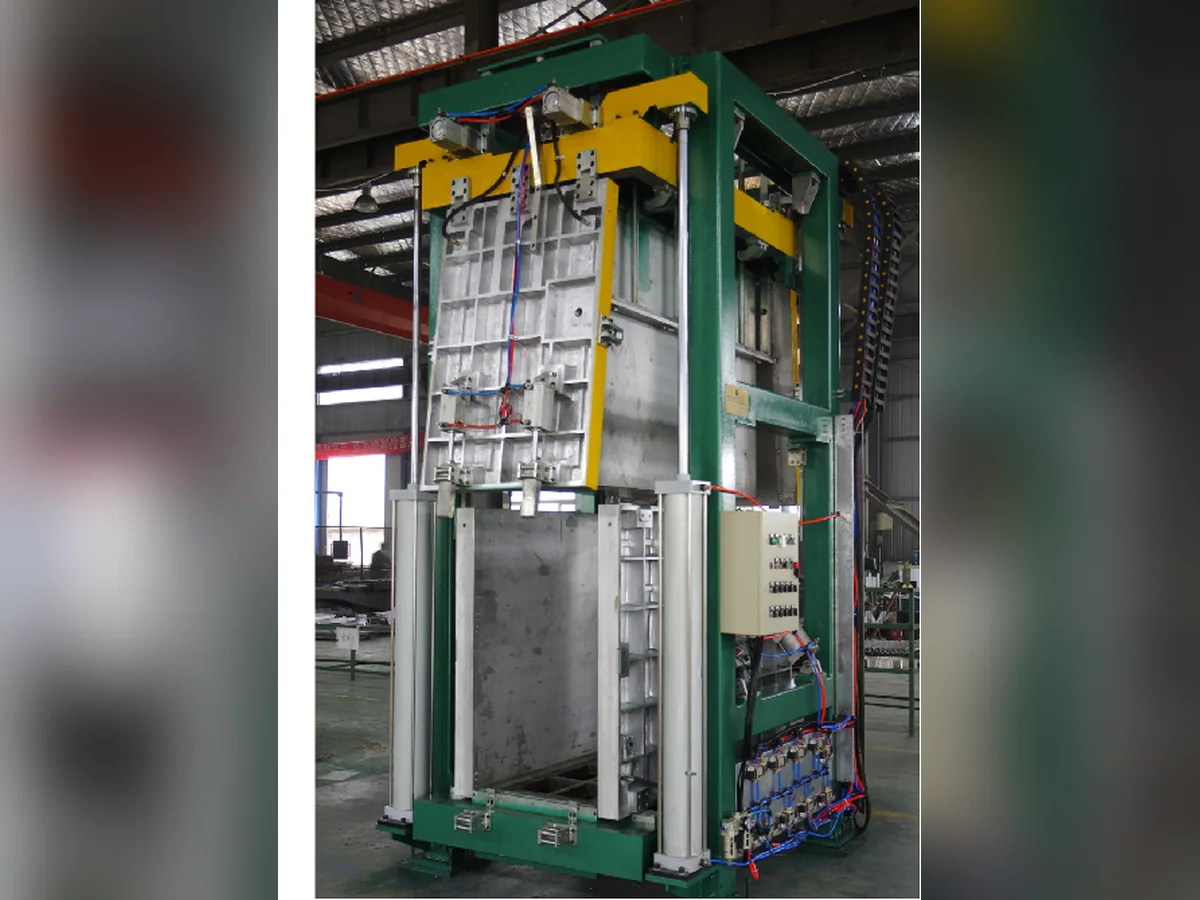

Hydraulic Foaming Press — Specialty / Irregular Cabinets
Standalone hydraulic foaming press for air-curtain, wine cabinet and irregular / non-standard cabinet foaming. Water-heated + air-cooling, 50 kW, 40–120 cabinets/shift. Complements existing line for capacity peaking.

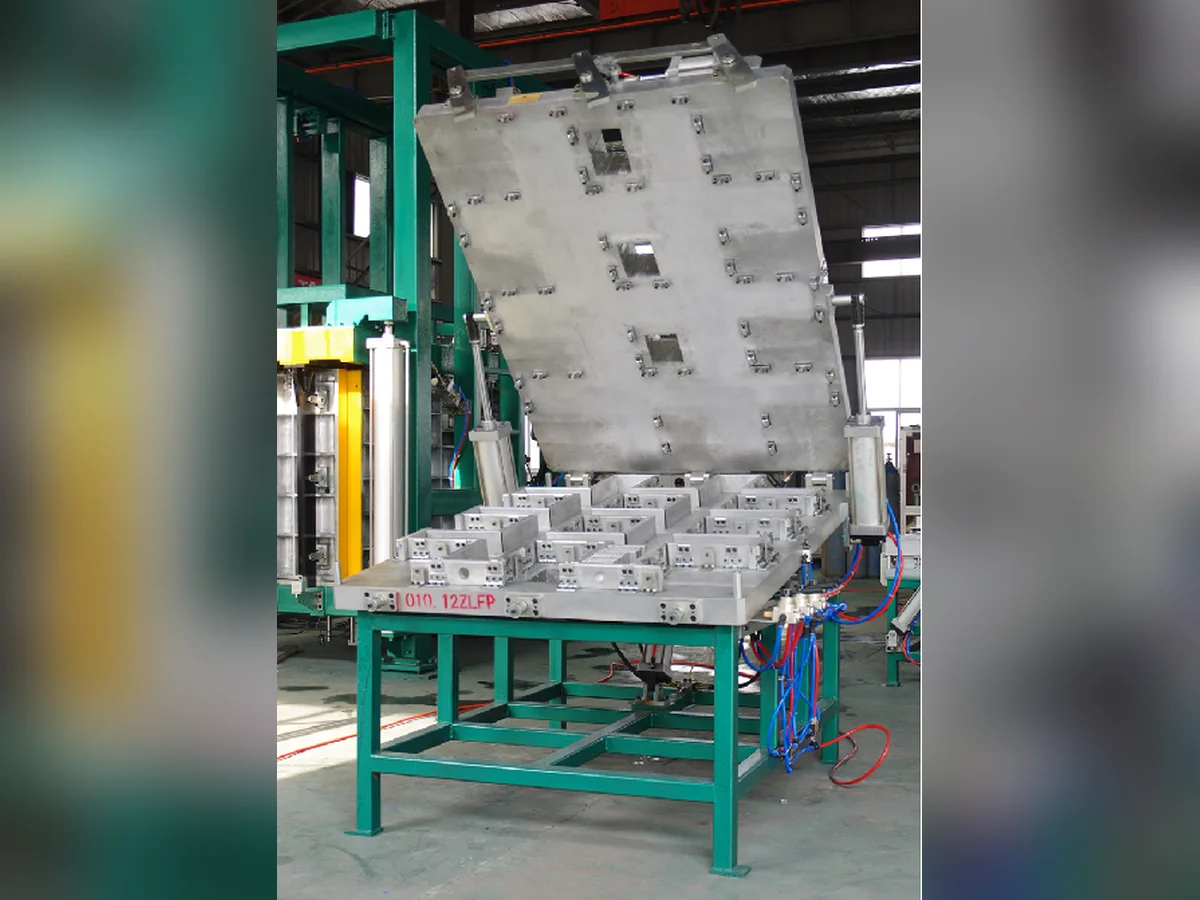

Island Freezer Linear Pneumatic Foaming Specialty Machine
Pneumatic single-station specialty foaming machine for supermarket island freezers (2–3 m long cabinets). Air-cylinder clamping for low-cost specialty foaming, water heating, 30 kW. Best fit 50–150 island cabinets/shift.

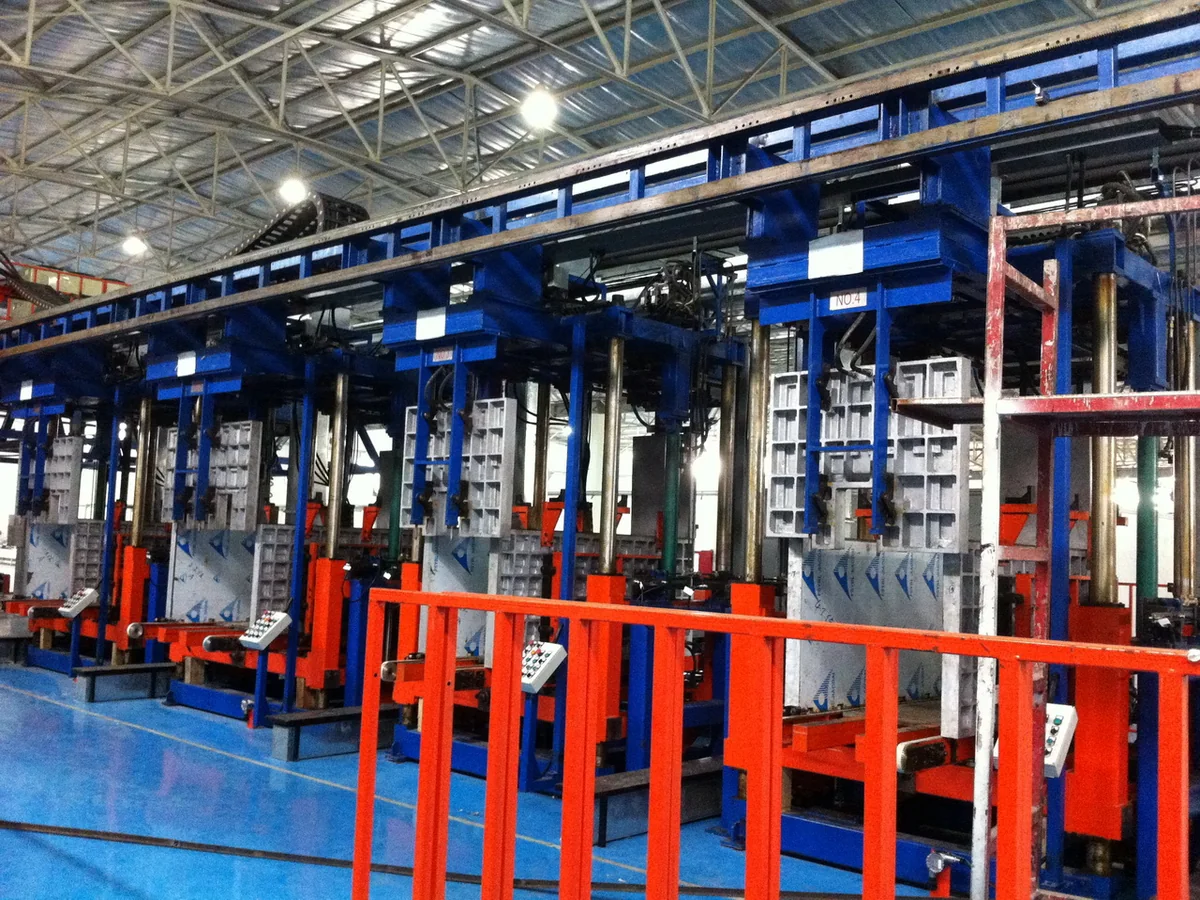

Linear Cabinet PU Foaming Line — 6 / 8 / 11 Stations Configurable
Linear in-line PU foaming for refrigerator cabinet body. Scalable from 6-station motor-driven (~800–2,500 cabinets/shift, small-medium factories) to 11-station hydraulic (~4,000–6,000 cabinets/shift, mainstream OEM). Multi-spec mixed-line production. Cabinet size 800–2,000 mm L × 450–2,000 mm W × 450–900 mm H. Water-heated, PID-controlled.

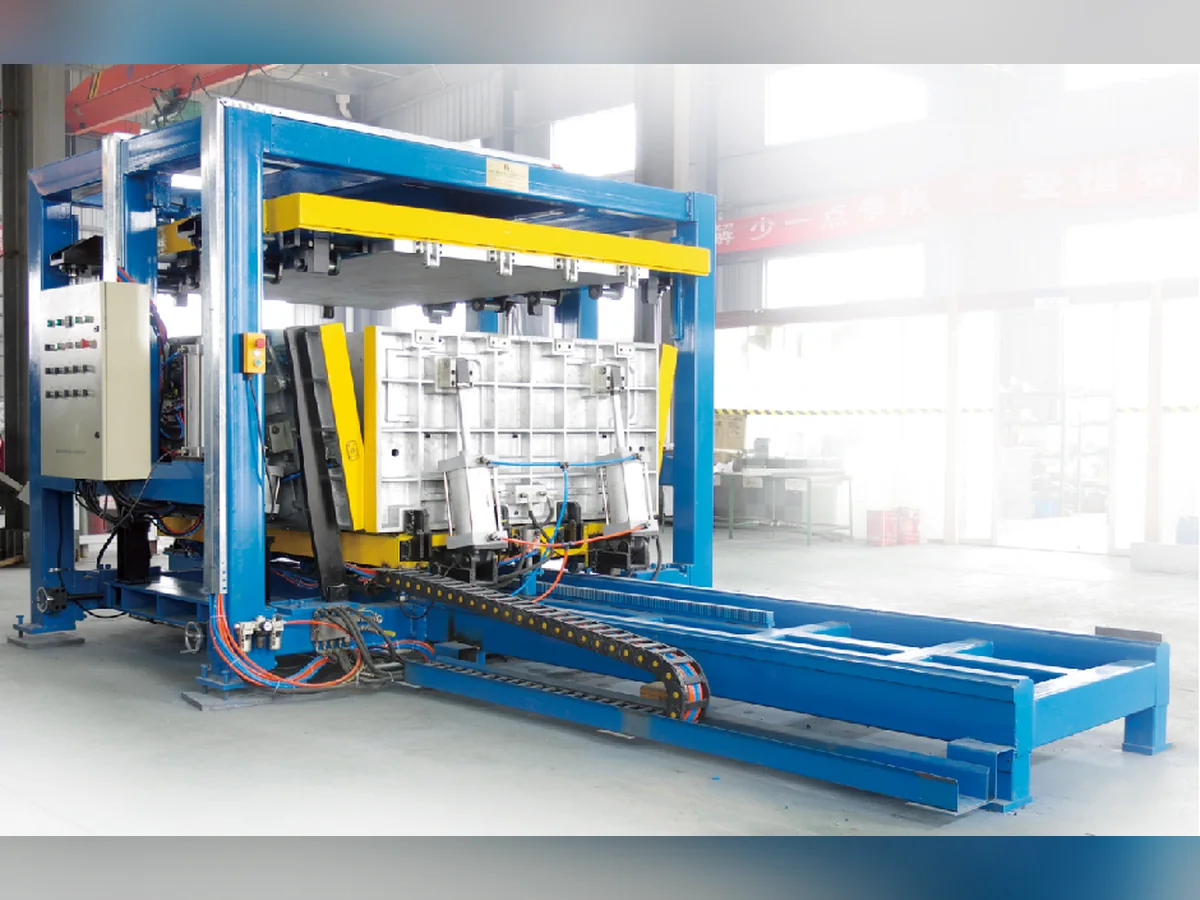

Single-Station Linear Cabinet Foaming Specialty Machine
Single-station hydraulic linear specialty foaming machine for refrigerator cabinet R&D, sample runs and low-volume production. Same fixture template as 11-station main line — use for mould trial and PE/EPP wave-type chest freezer samples before full-line production.

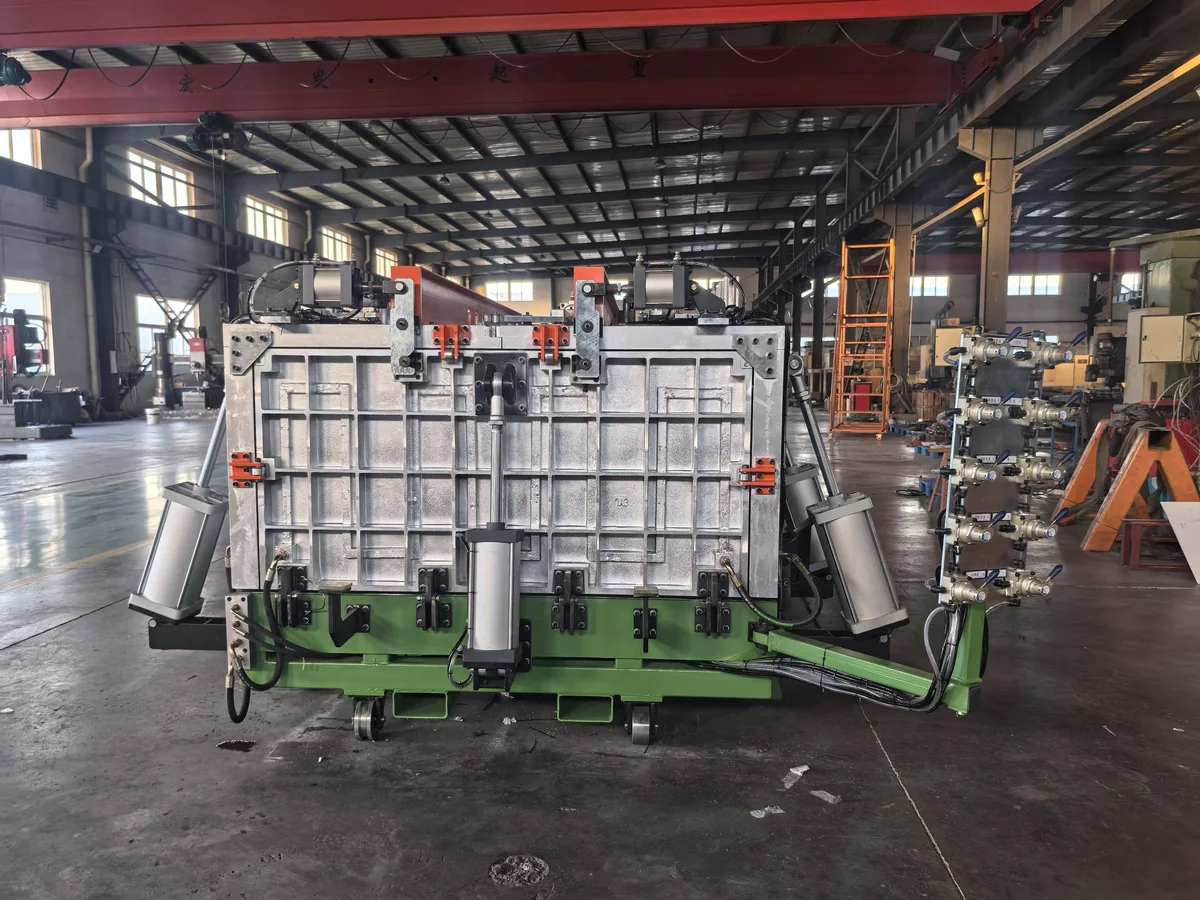

Supermarket Refrigerated Cabinet Foaming Specialty Machine
Linear hydraulic specialty foaming machine for supermarket service cabinets, convenience store back-warehouse refrigerators and restaurant chain prep refrigerators. Water-heated + air-cooling, 380 kW peak, 200–600 cabinets/shift.
Refrigerator Door Foaming Lines (5)
Door-dedicated foaming lines — 26-station ground-rail closed-loop, 16-station crawler, rotary (hydraulic / servo) hub-type, and manual specialty machines. Sized from R&D pilot through high-volume OEM door output.
26-Station Ground-Rail PU Foaming Line for Refrigerator Doors — Closed-Loop Track Layout
Closed-loop ground-rail PU foaming line dedicated to refrigerator and cabinet DOOR foaming. 26 fixture stations on a continuous steel track, 20-sec cycle, 3,000–6,000 doors per shift. 2,000 × 900 mm fixture × 200 mm closing height — sized for door panels. Cyclopentane + ATEX Zone 1, steam or oil heating.
Manual Rotary 4-Station Door Foaming Specialty Machine
Manual rotary 4-station door foaming machine for R&D, pilot, sample production and low-volume premium refrigerator door foaming. 90-second cycle, 30 kW, 150–400 doors/shift. Cost-effective sample-run option before committing to full crawler / hub line.

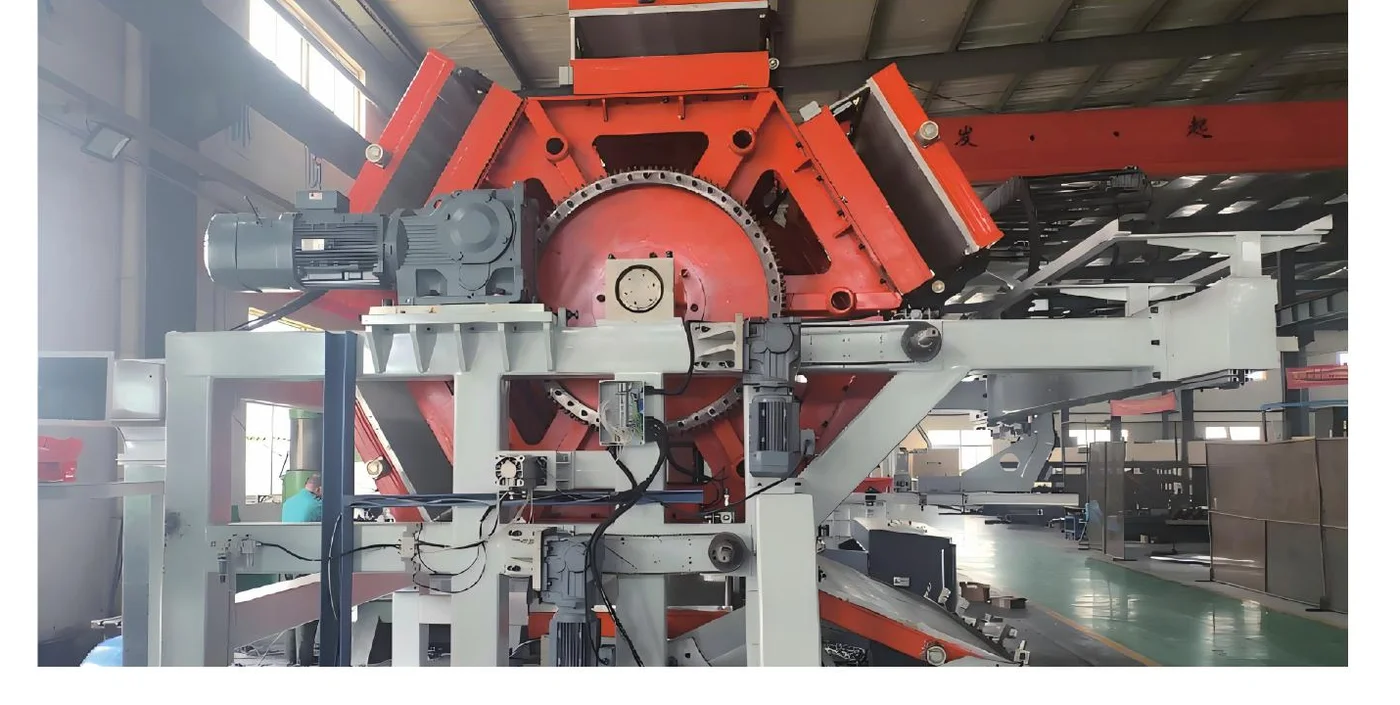

7-To-8 Station Rotary-Door PU Foaming Line (Door-Dedicated Hub)
Rotary (hub-type) door foaming line dedicated to refrigerator and cabinet DOOR foaming. 7–8 stations · 46-second cycle · compact 33 m² footprint · ~65 kW · fast variety changeover.

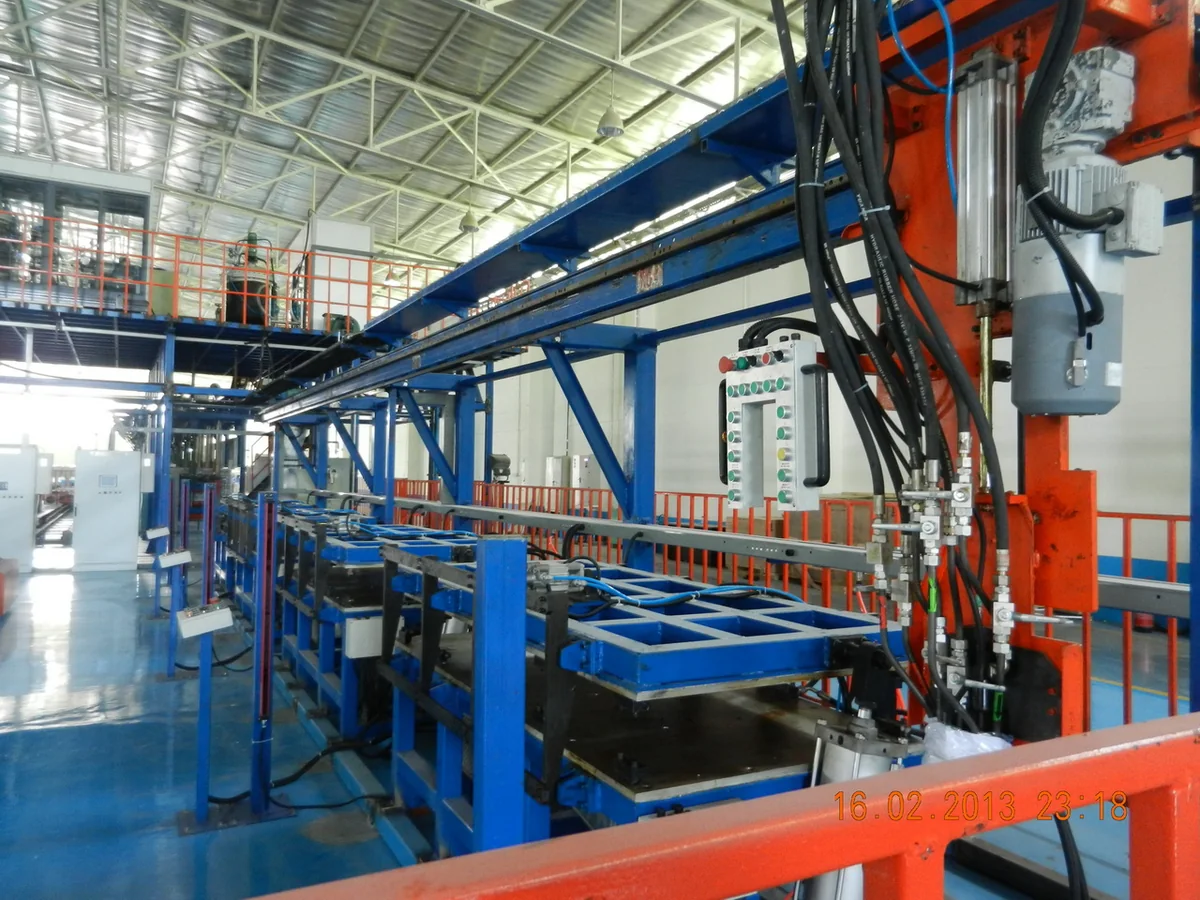

6-Station Servo-Motor Rotary Door Foaming Line
6-station servo-motor-driven rotary door foaming line for premium / high-end refrigerator OEM. Servo precision ±0.1 mm rotation, 50-second cycle, supports door panels up to 2,100 × 1,000 mm with 380 mm clamp height. 500–800 doors/shift sweet spot for multi-variant precision door manufacturing.

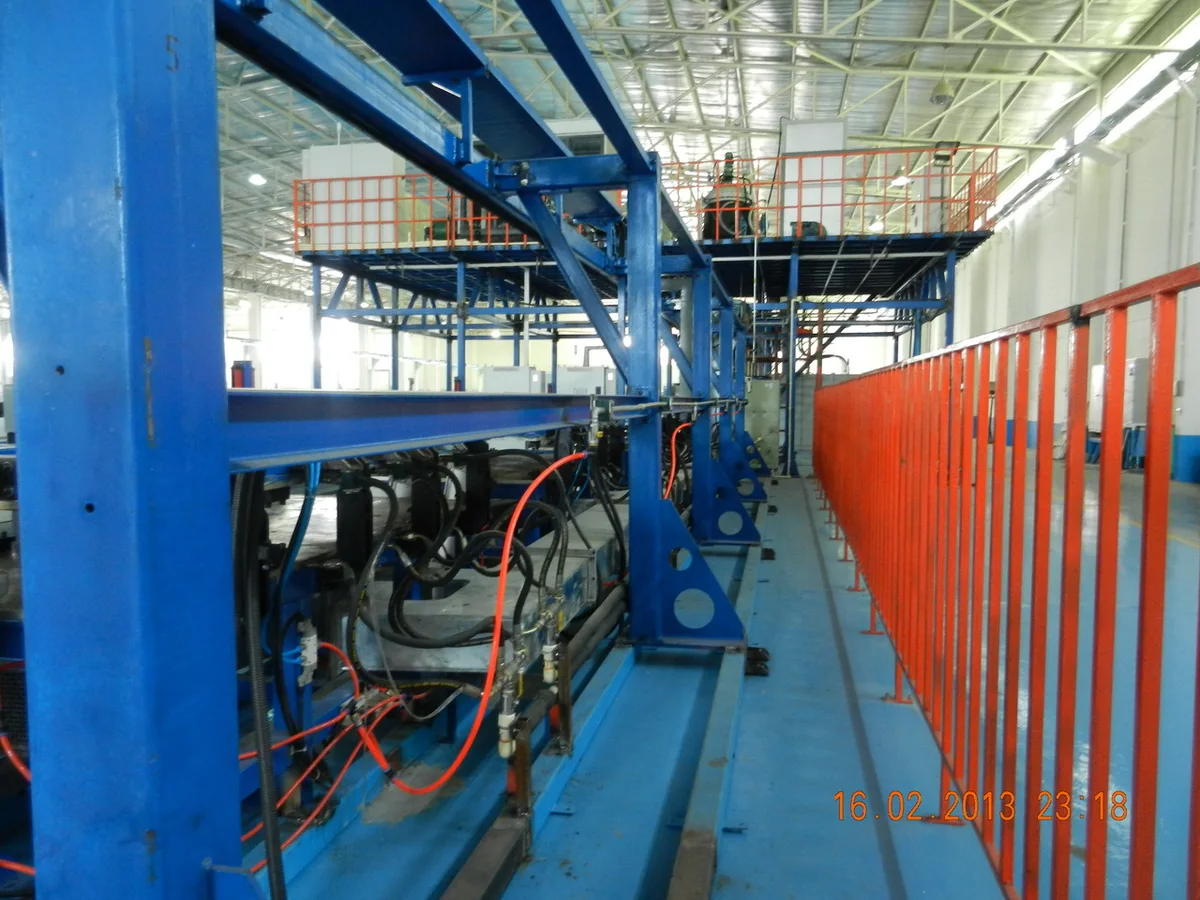

16-Station Crawler-Chain Door Foaming Line
16-station crawler-chain door foaming line for mid-to-large refrigerator OEM factories (1,500–2,500 doors/shift). 30-second cycle, water-heated, 100 kW, 17 m line length × 2.5 m wide. Compact alternative to 26-station ground-rail loop for door-mix production.

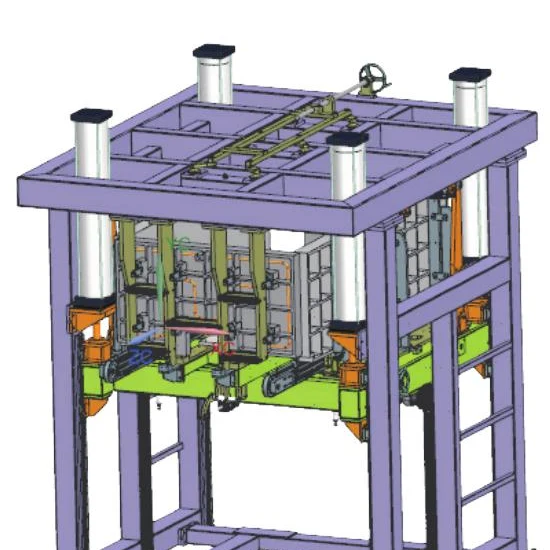

Refrigerator Fixture & Auxiliary (1)
Mould fixture frames and auxiliary equipment for refrigerator foaming line integration.

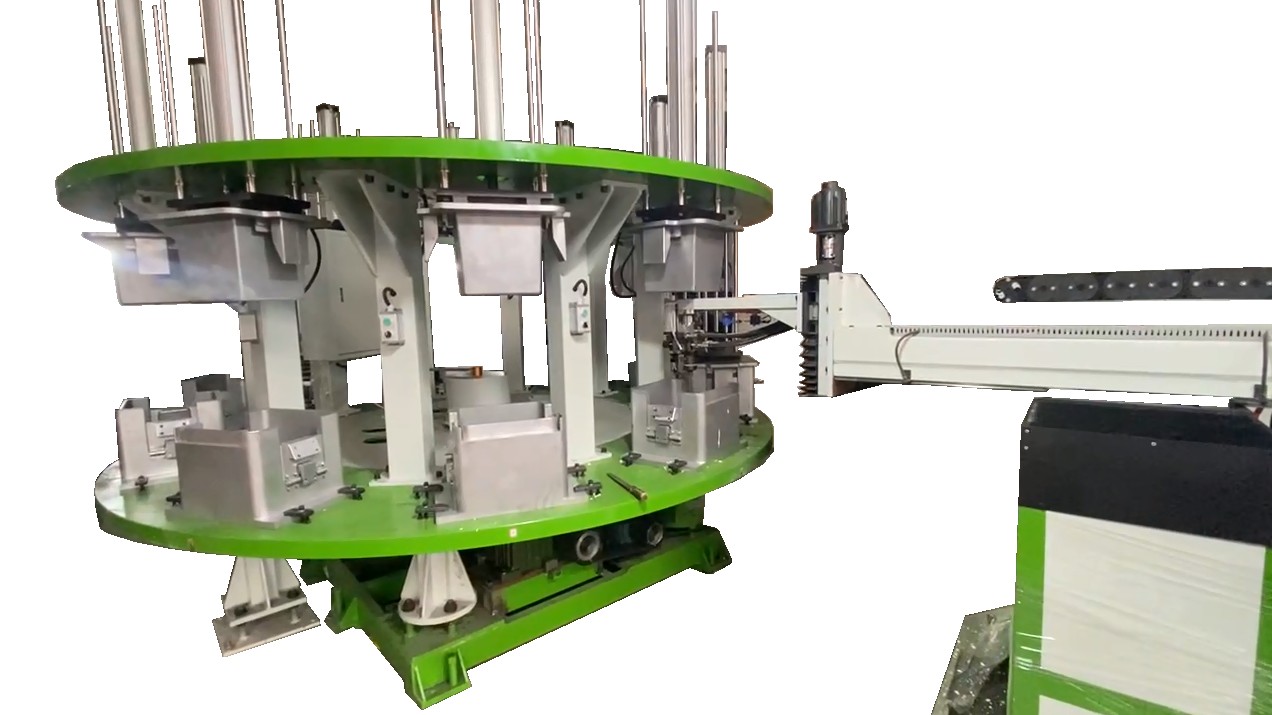

Insulation Box Production Line (1)
PU foaming line for cold-chain insulation boxes (10L–600L) — vaccine transport, meal kit delivery, seafood export. WHO PQS-spec recipe, scalable jig count to your daily output target.

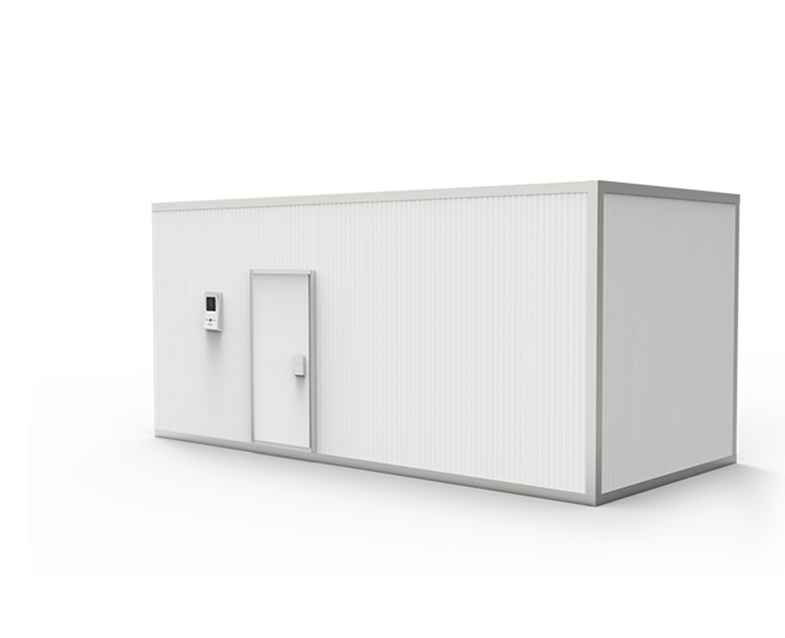

Cold Room Panel Production Line (1)
Discontinuous press for 1.2 m × 3/6/9/12/18 m PU sandwich panels — modular cold rooms, commercial cold storage, industrial freezer rooms (down to -40°C), pharma cold storage and reefer container insulation.
